Front Brake Caliper, Electric Parking brake motor gear unit Removal Note

1. Remove the rear brake caliper and electric parking brake motor gear unit as a single unit, and suspend them in a place out of the way using a cable.

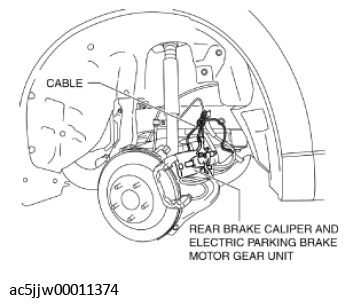

Fig 1: Removing Rear Brake Caliper And Electric Parking Brake Motor Gear Unit

Courtesy of MAZDA MOTORS CORP.
