Rear Brake Caliper Component Removal Note

  1. Remove the rear brake caliper component and suspend it in a place out of the way using a cable.

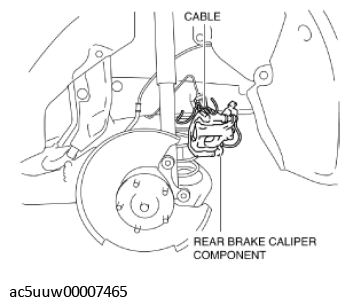

    Fig 1: Removing Rear Brake Caliper Component
    G11426948Courtesy of MAZDA MOTORS CORP.
