Rear Brake Caliper Component Installation Note

  1. Push the piston in using the commercially available disc brake expand tool.

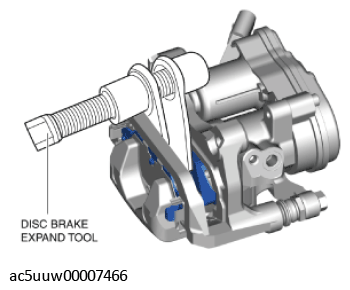

    Fig 1: Pushing Piston Using Commercially Available Disc Brake Expand Tool
    G11426949Courtesy of MAZDA MOTORS CORP.
  2. Install the rear brake caliper component.
