Caliper Removal Note

  1. Remove the bolt shown in the figure and lift up the rear brake caliper.

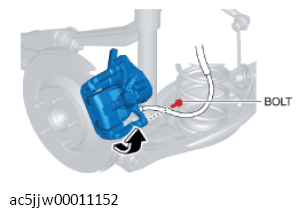

    Fig 1: Lifting Up Rear Brake Caliper
    G11426944Courtesy of MAZDA MOTORS CORP.
