Front Brake Mounting Support Removal/Installation
>>
Front Brake Caliper Removal Note
Front Brake Caliper Removal Note
Remove the front brake caliper and suspend it in a place out of the way using a cable.

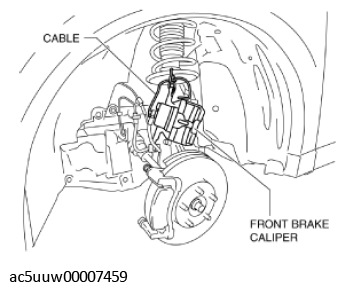

Fig 1: Removing Front Brake Caliper
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
