Front Brake Disc Removal/Installation: Notes

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

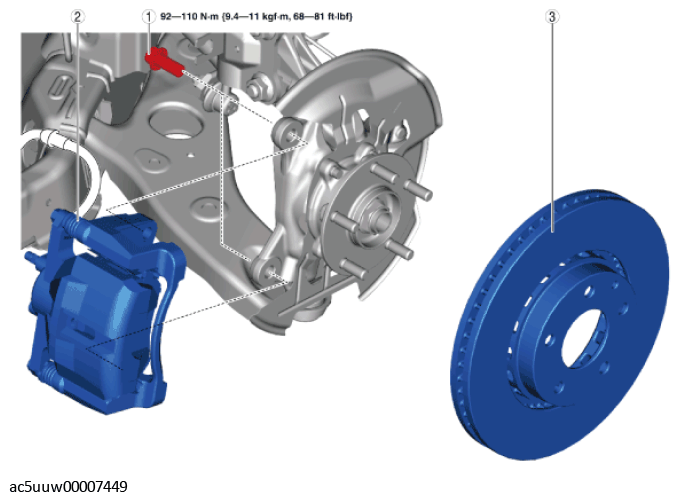

Fig 1: Removing/Installing Front Brake Disc Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Front brake caliper component (See Front Brake Caliper Component Removal Note .) (See Front Brake Caliper Component Installation Note .)
3	Disc plate
