Guide Plate Installation Note

CAUTION:
  • When assembling the guide plates to the mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.
  1. Install the guide plate as shown in the figure.

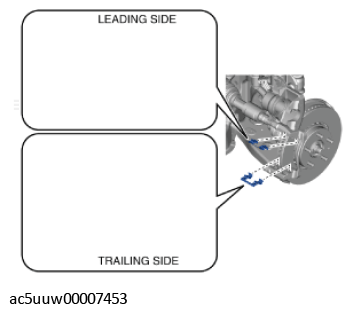

Fig 1: Installing Guide Plate
G11426905Courtesy of MAZDA MOTORS CORP.
