Front Brake Caliper Installation Note

  1. Clean the exposed area of the piston.
  2. Push the piston in using the commercially available disc brake expand tool.

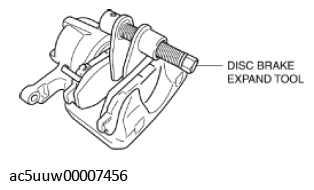

    Fig 1: Pushing Piston Using Commercially Available Disc Brake Expand Tool
    G11426903Courtesy of MAZDA MOTORS CORP.
  3. Install the front brake caliper component.
