Vehicle Rear Side

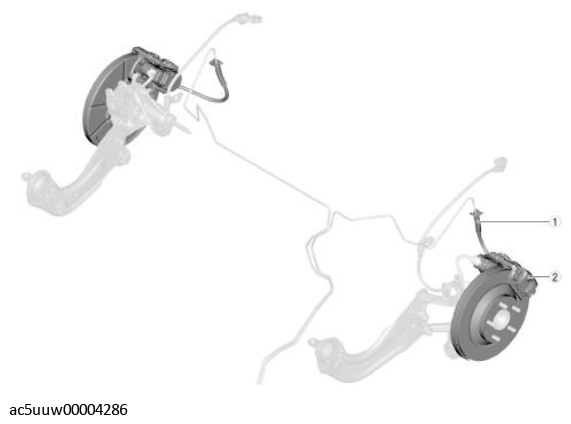

Fig 1: Conventional Brake System Parts Location (Vehicle Rear Side)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear brake hose (See REAR BRAKE HOSE REMOVAL/INSTALLATION .)
2	Rear brake (See REAR BRAKE INSPECTION .) (See REAR BRAKE DISC REMOVAL/INSTALLATION .) (See REAR BRAKE DISC PAD REMOVAL/INSTALLATION .) (See REAR BRAKE CALIPER REMOVAL/INSTALLATION .) (See REAR BRAKE CALIPER DISASSEMBLY/ASSEMBLY .) (See REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION .)
