Snap Pin Installation Note

  1. Install the snap pin as shown in the figure.

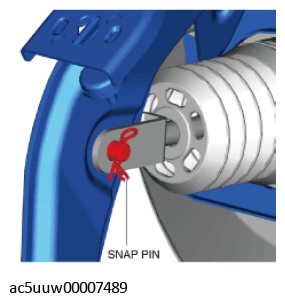

    Fig 1: Locating Snap Pin
    G11426893Courtesy of MAZDA MOTORS CORP.
