Brake Pedal Removal Note
- Move the power brake unit to the vehicle front where the power brake unit fork does not interfere with the brake pedal arm.

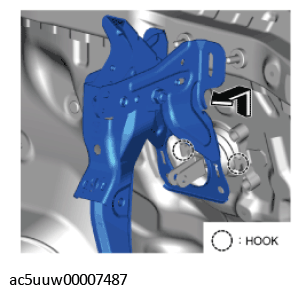

- Move the brake pedal in the direction of the arrow shown in the figure, and remove it while avoiding the hook.
Courtesy of MAZDA MOTORS CORP.
