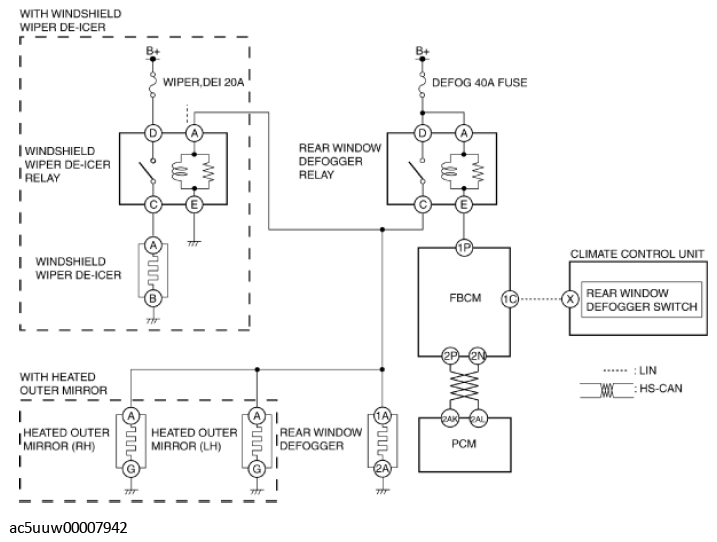

Home >> Mazda >> 2017 >> CX-5 Grand Select, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Rear Window Defogger/Heated Outer Mirror/Windshield Wiper De-ICER System Inspection >> Manual Air Conditioner >> System wiring diagram
