With Forward Sensing Camera (FSC)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)
  3. Disconnect the auto-dimming rearview mirror connector.

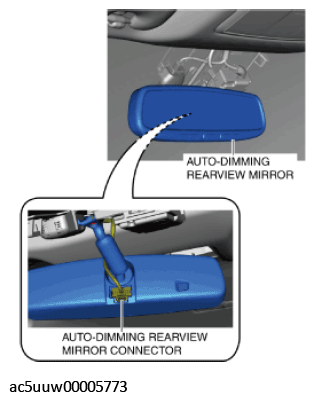

    Fig 1: Disconnecting Auto-Dimming Rearview Mirror Connector
    G11427633Courtesy of MAZDA MOTORS CORP.
  4. Loosen the screw.

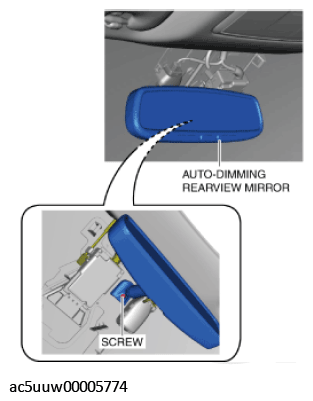

    Fig 2: Loosening Auto-Dimming Rearview Mirror Screw
    G11427634Courtesy of MAZDA MOTORS CORP.
  5. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

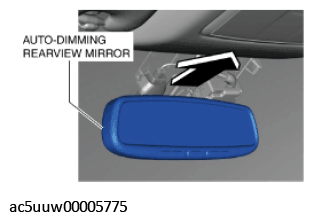

    Fig 3: Removing Auto-Dimming Rearview Mirror
    G11427635Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
