Front Guide Disassembly Note

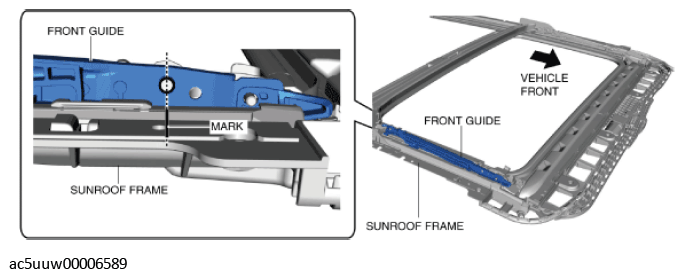

- Mark the position shown in the figure for correct positioning.CAUTION:
- If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and the part may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.
