Sunroof Location Index

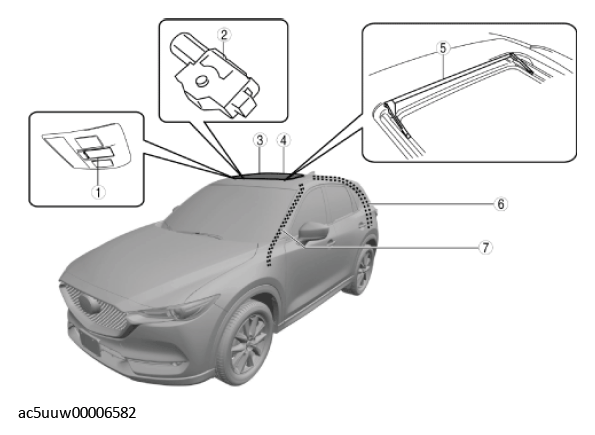

Fig 1: Sunroof Related Parts

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Sunroof switch (See SUNROOF SWITCH REMOVAL/INSTALLATION .) (See SUNROOF SWITCH INSPECTION .) (See SUNROOF SYSTEM INITIALIZATION PROCEDURE .)
2	Sunroof motor (See SUNROOF MOTOR REMOVAL/INSTALLATION .) (See SUNROOF MOTOR INSPECTION .)
3	Glass panel (See GLASS PANEL REMOVAL/INSTALLATION .) (See GLASS PANEL ADJUSTMENT .)
4	Sunroof unit (See SUNROOF UNIT REMOVAL/INSTALLATION .) (See SUNROOF UNIT DISASSEMBLY/ASSEMBLY .)
5	Deflector (See DEFLECTOR REMOVAL/INSTALLATION .)
6	Rear drain hose (See REAR DRAIN HOSE REMOVAL/INSTALLATION .)
7	Front drain hose (See FRONT DRAIN HOSE REMOVAL/INSTALLATION .)
