Weatherstrip Installation Note

  1. Install the weatherstrip to the glass panel with the joint part of the weatherst rip assembled to the vehicle rear side.

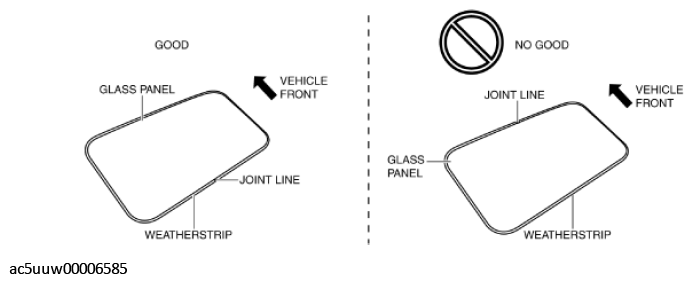

Fig 1: Caution For Installing Weatherstrip To Glass Panel
G11426713Courtesy of MAZDA MOTORS CORP.
