Trunk Board RH/LH

  1. Move the trunk board RH and trunk board LH in the direction of the arrows shown in the figure while detaching the clips.

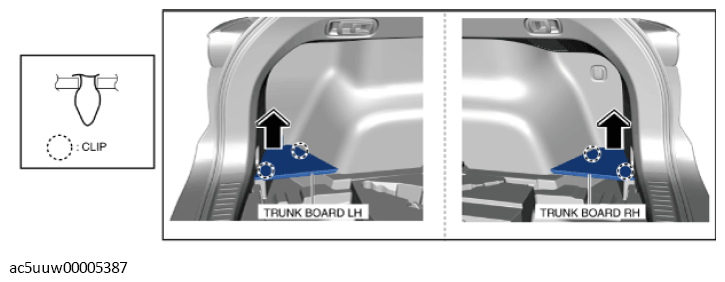

    Fig 1: Moving Trunk Board (RH And LH)
    G11428042Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
