Center Trunk Board

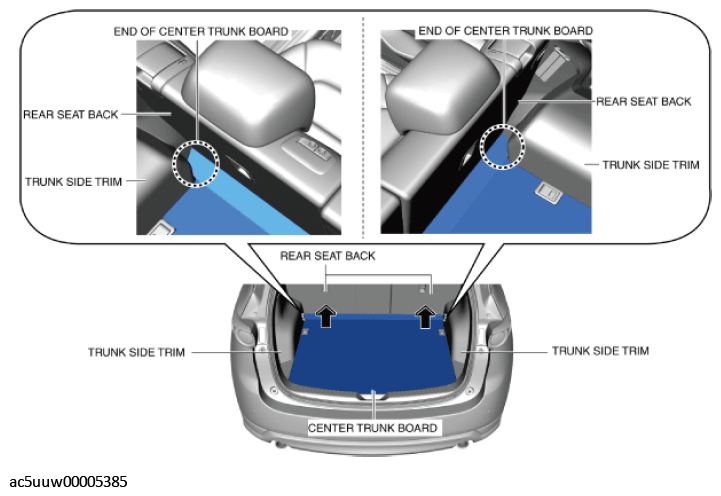

Move the center trunk board in the direction of the arrows shown in the figure, and remove the ends of the center trunk board from the gap between the trunk side trim and the rear seat back.

Fig 1: Moving Center Trunk Board
Courtesy of MAZDA MOTORS CORP.

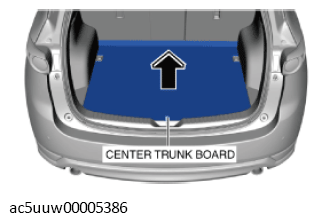

Remove the center trunk board in the direction of the arrow shown in the figure.

Fig 2: Removing Center Trunk Board
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
