Tweeter Grille (With tweeter)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Remove the tweeter. (See TWEETER REMOVAL/INSTALLATION .)
  4. Move the tabs in the order of arrows (1) and (2) shown in the figure and remove the tweeter grille.

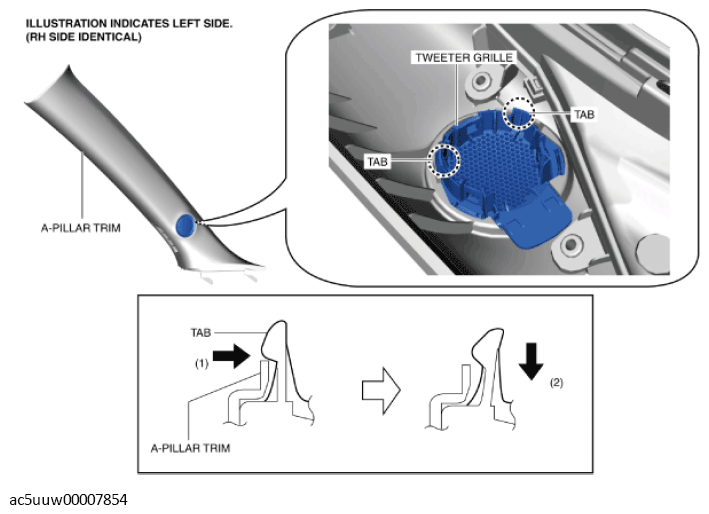

    Fig 1: Moving Tabs Of Tweeter Grille
    G11428030Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
