Side Wall Removal/Installation: Passenger-side

  1. Remove the clip and hooks while pulling the side wall in the order of arrows (1) and (2) shown in the figure.
    CAUTION:
    • If the side wall is pulled forcibly when removing the hooks and clip, the guide could be damaged. When pulling the side wall in the direction of arrows (1) and (2), be careful not to damage the guide.

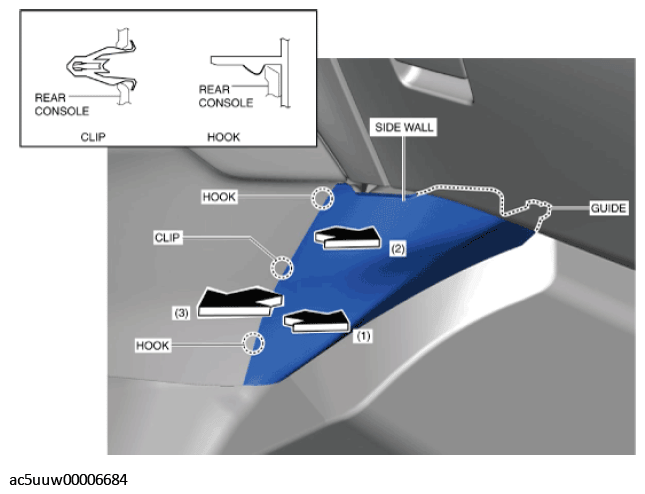

    Fig 1: Pulling Out Side Wall (Passenger-Side)
    G11428026Courtesy of MAZDA MOTORS CORP.
  2. Pull the side wall in the direction of arrow (3) shown in the figure and remove it while removing the guide.
  3. Install in the reverse order of removal.
