Shift Panel Removal/Installation: MTX

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
3. Shift lever knob (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
Using a remover tool, move the shift panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips and hooks.

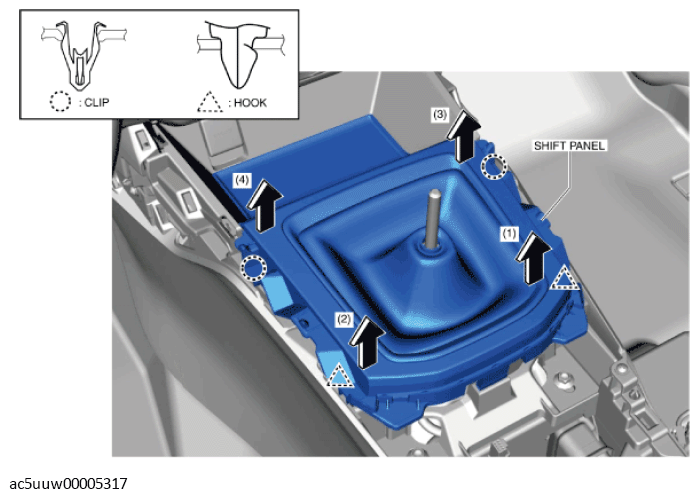

Fig 1: Moving Shift Panel Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Move the shift panel in the direction of the arrow shown in the figure and remove it while detaching the guides.

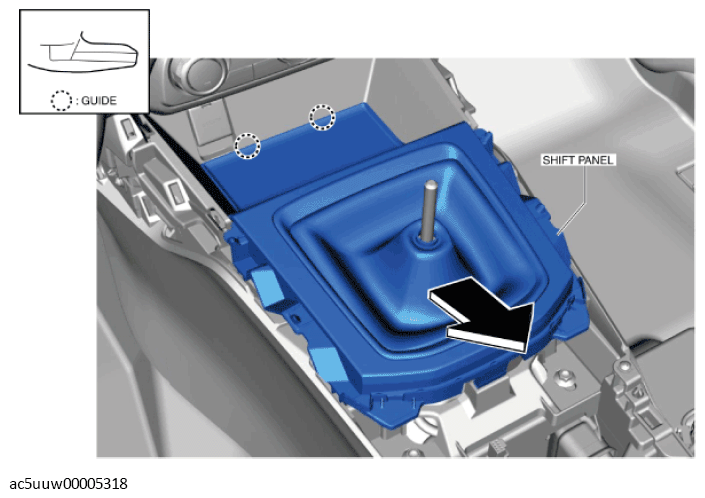

Fig 2: Removing Shift Panel
Courtesy of MAZDA MOTORS CORP.
NOTE:
- When replacing the shift panel, press the tabs in the order of arrows (1) and (2) shown in the figure and remove the console mat.

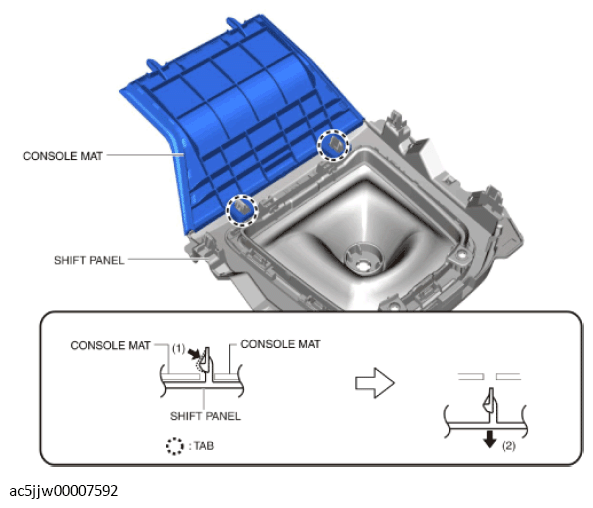

Fig 3: Pressing Shift Panel Tabs
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
