Meter Hood No. 1

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)

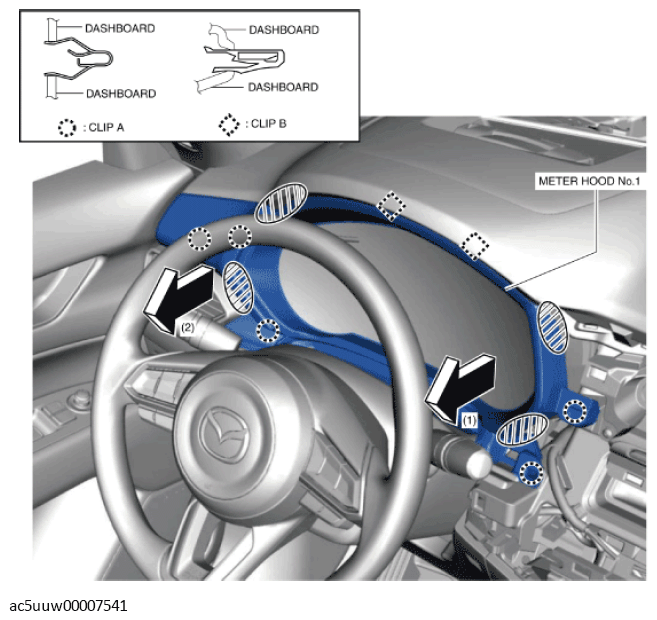

  3. Hold the shaded areas shown in the figure, pull meter hood No. 1 in the order of arrows (1) and (2), and remove it while detaching clips A and B.
    Fig 1: Removing Meter Hood No. 1
    G11427996Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
