Meter Hood No. 1

  1. Disassemble in the order shown in the figure.

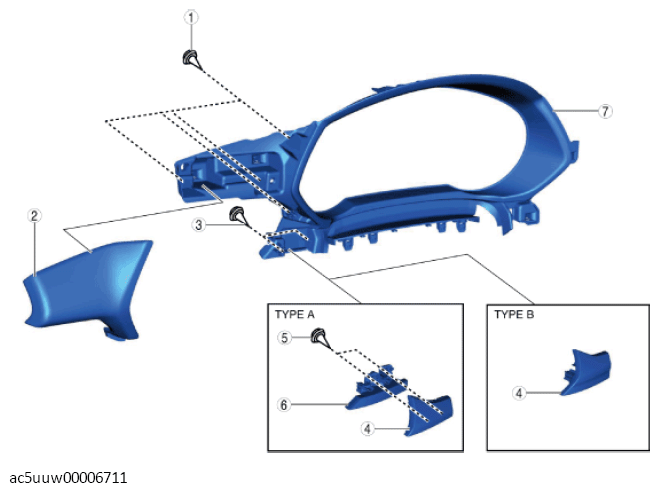

    Fig 1: Meter Hood Disassembly
    G11427994Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Cover No. 1
    3 Screw
    4 Cover No. 2
    5 Screw (Type A only)
    6 Partition plate (Type A only)
    7 Meter hood No. 1
  2. Assemble in the reverse order of disassembly.
