Front Door Trim Disassembly/Assembly: Passenger-side

  1. Disassemble in the order shown in the figure.

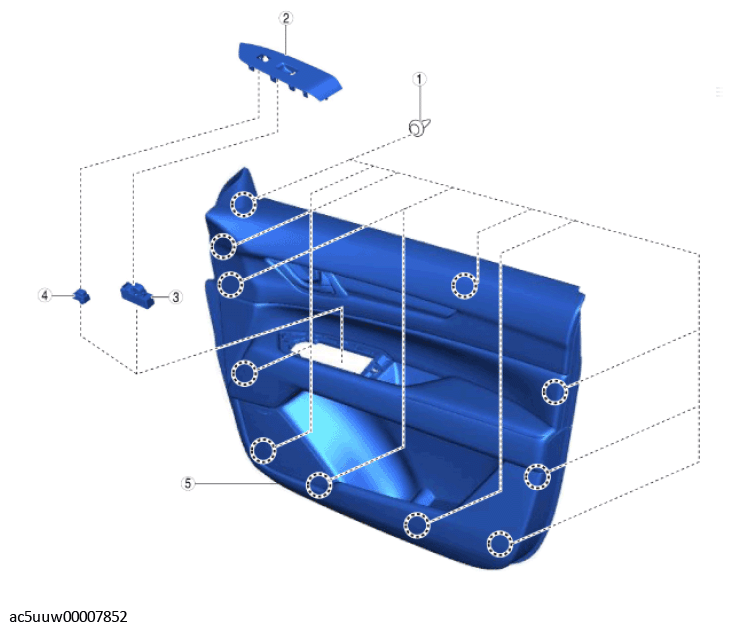

    Fig 1: Front Door Trim Disassembly (Passenger-Side)
    G11427918Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Power window subswitch cover
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3 Power window subswitch
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    4 Door lock switch
    (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
    5 Front door trim
  2. Assemble in the reverse order of disassembly.
