Dashboard Wiring Harness Removal Note

  1. The shape of the wiring harness clips at the positions shown in the figure cannot be visually verified. Refer to wiring harness clips A and B shown in the figure when removing the dashboard wiring harness.

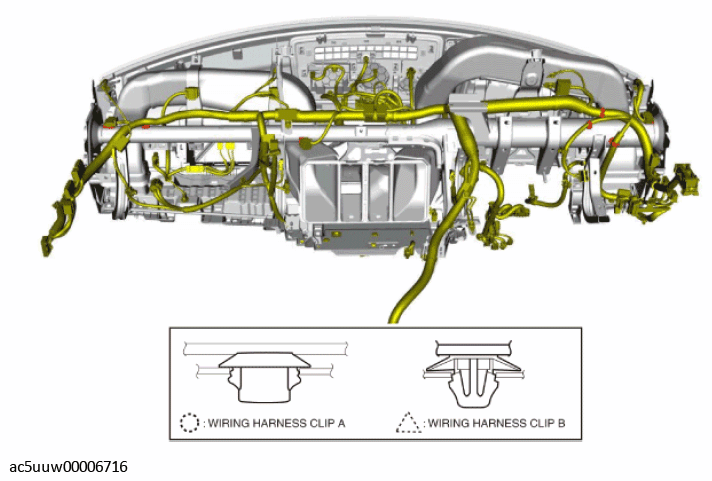

Fig 1: Dashboard Wiring Harness And Clips
G11427861Courtesy of MAZDA MOTORS CORP.
