C-Pillar Trim Installation Note

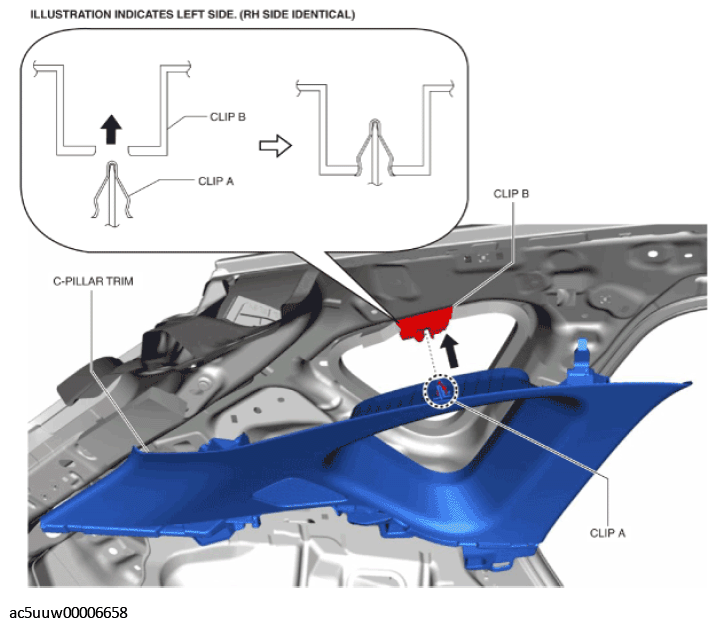

  1. Move the C-pillar trim in the direction of the arrow shown in the figure and insert clip A into the clip B receptacle.
    Fig 1: Installing C-Pillar Trim
    G11427837Courtesy of MAZDA MOTORS CORP.
  2. Verify that the clip and pin installation positions and their installation holes are aligned.
