Assist Handle Removal/Installation: Removal

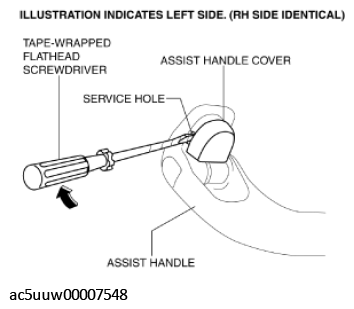

Insert a tape-wrapped flathead screwdriver into the service hole and remove the assist handle covers.

Fig 1: Removing Assist Handle Covers Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

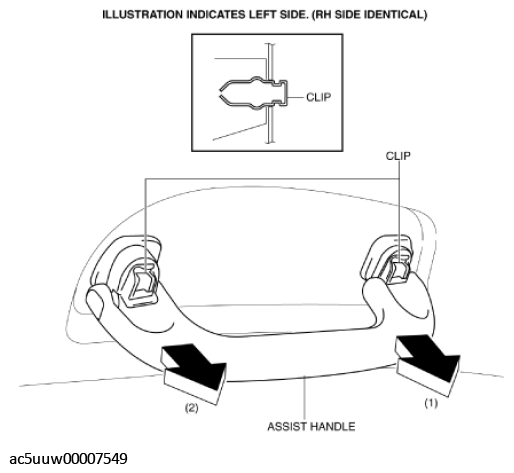

Pull the assist handle in the order of arrows (1) and (2) shown in the figure and remove it while detaching the clips.

Fig 2: Pulling Assist Handle
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Remove the assist handle by shaking it up and down.
