Roof Molding Removal

  1. Insert a remover tool in the position shown in the figure.

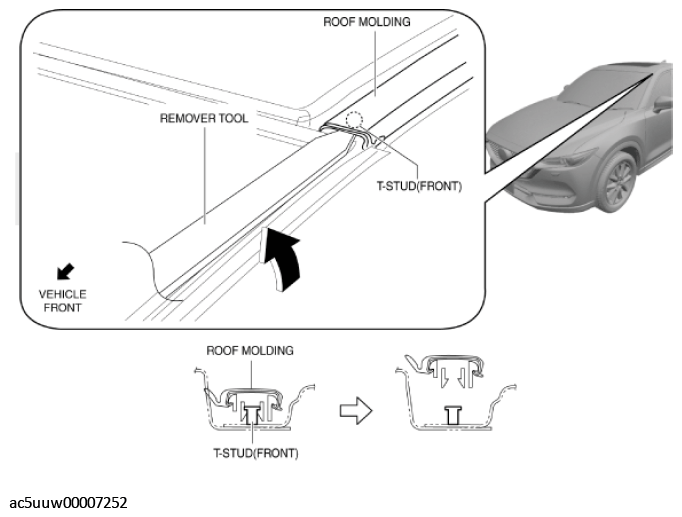

    Fig 1: Inserting Remover Tool In Roof Molding
    G11427612Courtesy of MAZDA MOTORS CORP.
  2. Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the front T-stud.
  3. Rotate the roof molding in the direction of arrows shown in the figure while pulling it up and remove it starting from the clips at the front of the vehicle.

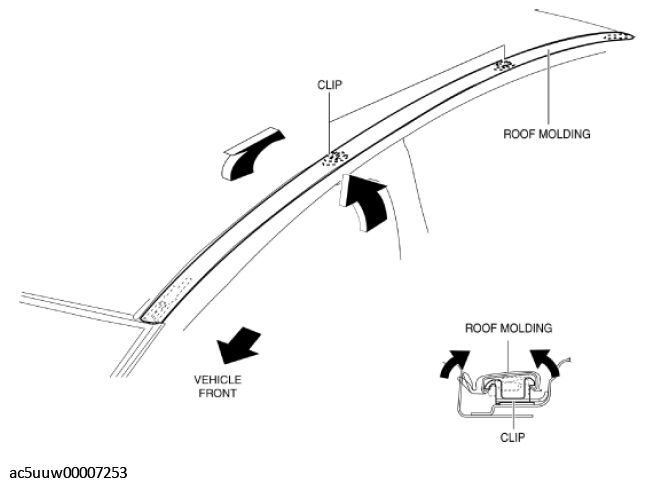

    Fig 2: Rotating Roof Molding
    G11427613Courtesy of MAZDA MOTORS CORP.
  4. Insert a remover tool in the position shown in the figure.

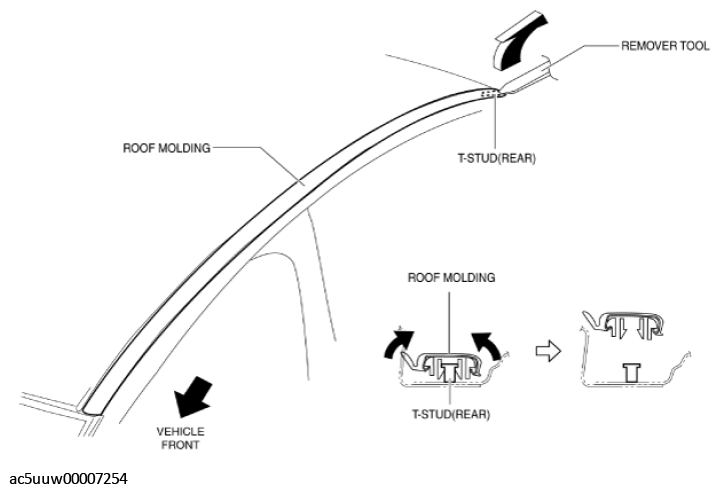

    Fig 3: Detaching Roof Molding From Rear T-Stud
    G11427614Courtesy of MAZDA MOTORS CORP.
  5. Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the rear T-stud.
  6. Remove the rear splash shield.
