Radiator Grille Disassembly/Assembly
>>
Upper Face Removal Note
Upper Face Removal Note
Insert the scale in the position shown in the figure and lift the tabs up.

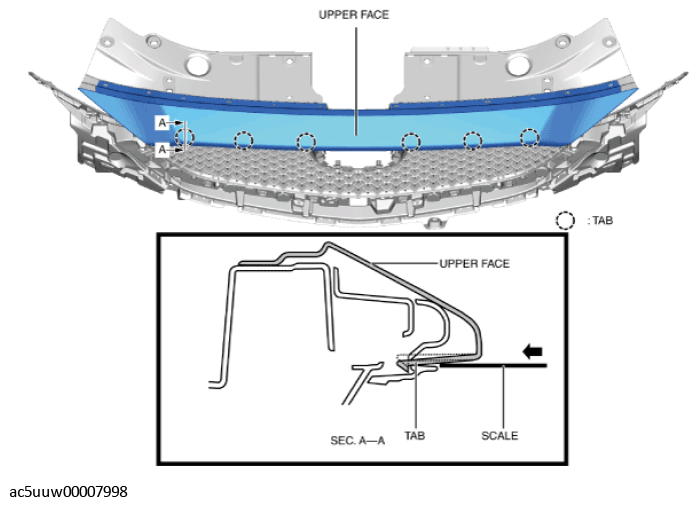

Fig 1: Inserting Scale In Radiator Grille Upper Face
Courtesy of MAZDA MOTORS CORP.
