Radiator Grille Disassembly/Assembly: Notes

Replacement parts

RIVET

Number of parts:8

Used place: Radiator grille

1. Disassemble in the order indicated in the table.

   Step 1

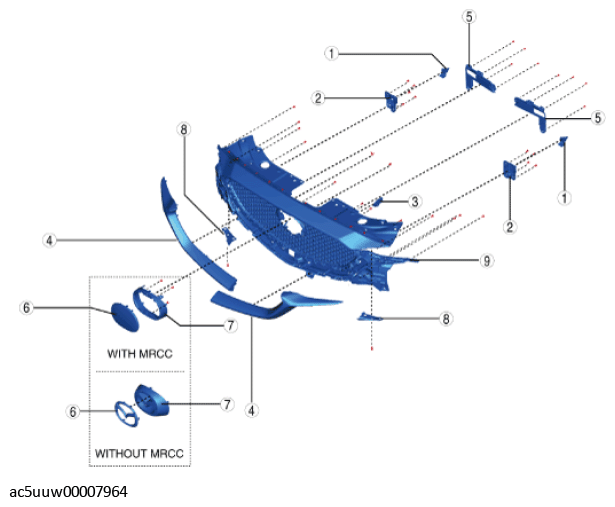

   Fig 1: Exploded View Of Radiator Grille (Step 1)

   Courtesy of MAZDA MOTORS CORP.
   COMPONENT DESCRIPTION



   1	Locator pin
   2	Locator pin bracket
   3	Clip
   4	Lower grille molding
   5	Radiator grille cover
   5	Mascot
   6	Mascot base
   7	Grille garnish
   8	Radiator grille component

   Step 2

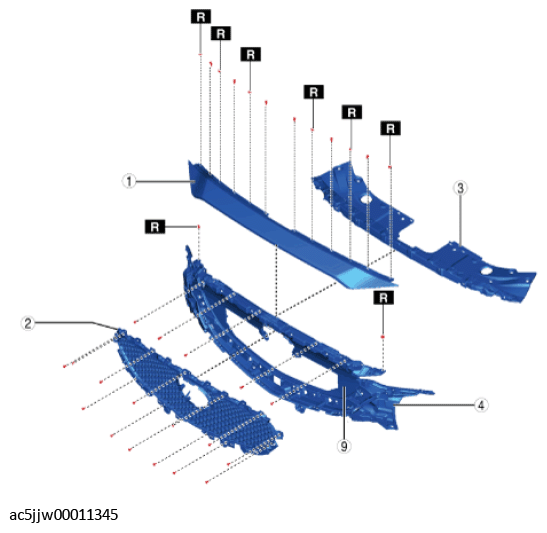

   Fig 2: Exploded View Of Radiator Grille (Step 2)

   Courtesy of MAZDA MOTORS CORP.
2. Assemble in the reverse order of disassembly.
