Rear mudguard

  1. Remove the fastener (LH).

    LH

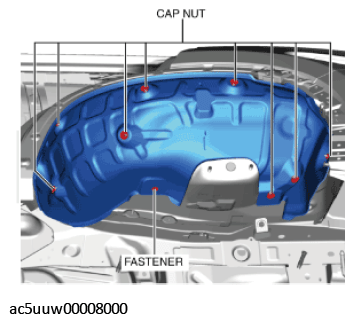

    Fig 1: Removing Rear Mudguard Cap Nuts (LH)
    G11427578Courtesy of MAZDA MOTORS CORP.

    RH

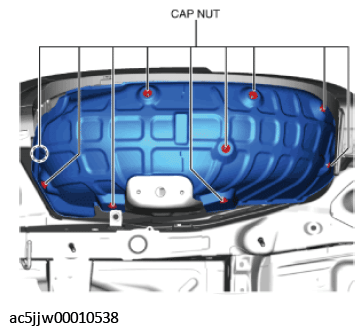

    Fig 2: Removing Rear Mudguard Cap Nuts (RH)
    G11427579Courtesy of MAZDA MOTORS CORP.
  2. Remove the cup nuts.
  3. Remove the rear mudguard.
  4. Install in the reverse order of removal.
