Front mudguard

  1. Remove the screws.

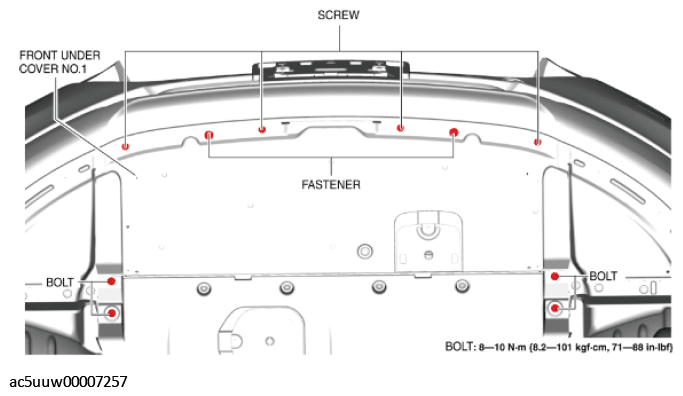

    Fig 1: Locating Front Mudguard Screws
    G11427574Courtesy of MAZDA MOTORS CORP.
  2. Remove the fasteners.
  3. Remove the bolts.
  4. Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  5. Remove the screws.

    LH

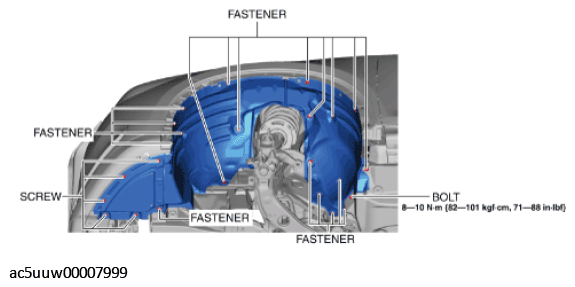

    Fig 2: Locating Front Mudguard Screws (LH)
    G11427575Courtesy of MAZDA MOTORS CORP.

    RH

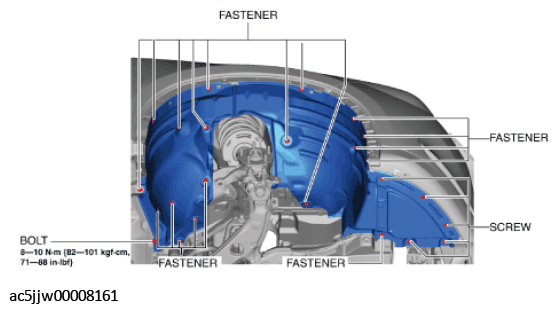

    Fig 3: Locating Front Mudguard Screws (RH)
    G11427576Courtesy of MAZDA MOTORS CORP.
  6. Remove the fasteners.
  7. Pull the front mudguard in the direction of the arrow shown in the figure.

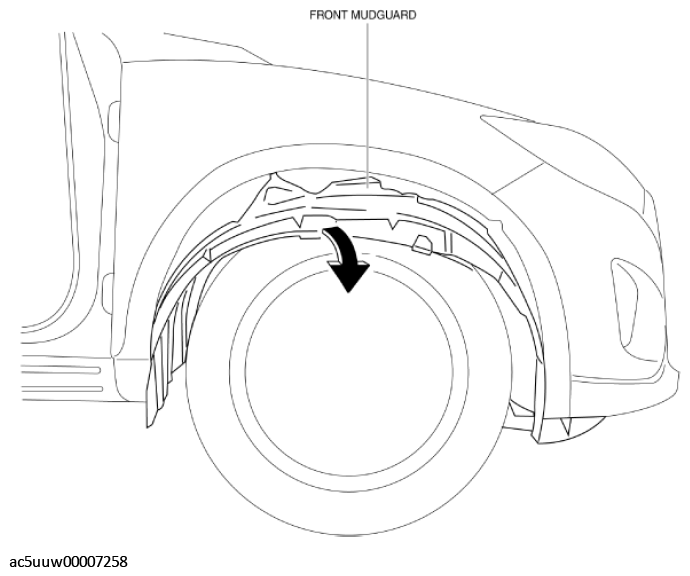

    Fig 4: Pulling Front Mudguard
    G11427577Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
