Door Sash Film Installation

  1. Remove any grease or dirt from the adhesion surface of the door.
  2. Peel off the tape backing and attach the door sash film to the position shown in the figure.

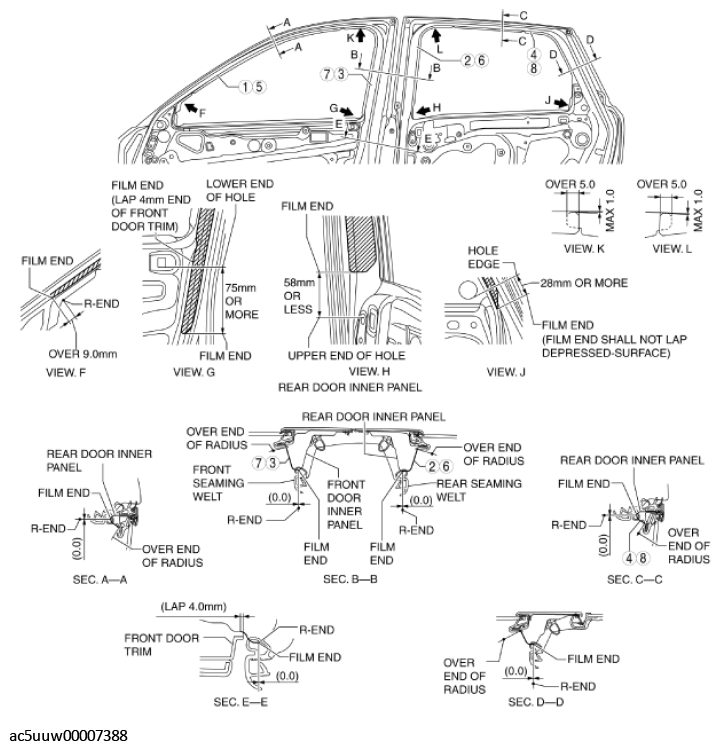

Fig 1: Attaching Door Sash Film To Position
G11427550Courtesy of MAZDA MOTORS CORP.
