Active Air Shutter Location Index

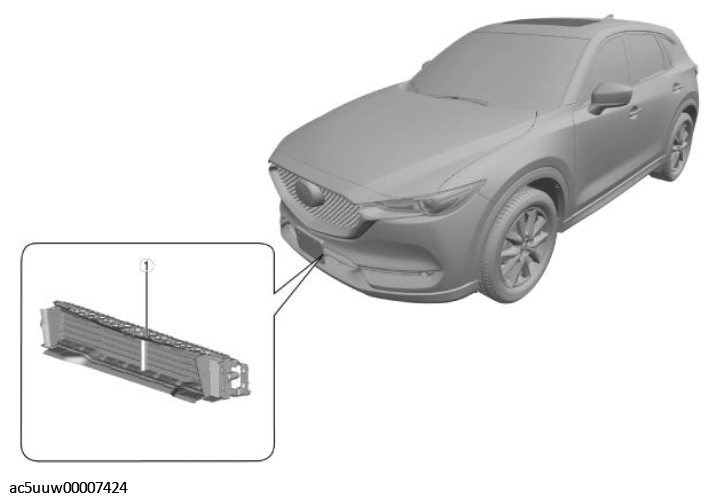

Fig 1: Active Air Shutter Location
G11425830Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Active airshutter
(See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
(See ACTIVE AIR SHUTTER INSPECTION .)
