Power Liftgate (PLG) Drive Unit Disposal (With Power Liftgate (PLG))

WARNING:
  • Do not disassemble a malfunctioning power liftgate (PLG) drive unit. If a malfunctioning power liftgate (PLG) drive unit is disassembled, the spring pressed into it may fly off and cause injury and damage to the vehicle.
  1. Cut the cylinder case of the power liftgate (PLG) drive unit at the position shown in the figure using a grinder.
    Fig 1: Power Liftgate (PLG) Drive Unit Cutting Position
    G11425996Courtesy of MAZDA MOTORS CORP.
  2. Cut the cylinder case of the power liftgate (PLG) drive unit at the position shown in the figure using a grinder and expose the spring and housing.
    Fig 2: Power Liftgate (PLG) Drive Unit Cylinder Case Cutting Position
    G11425997Courtesy of MAZDA MOTORS CORP.
  3. Secure the spring part of the power liftgate (PLG) drive unit in a vise.

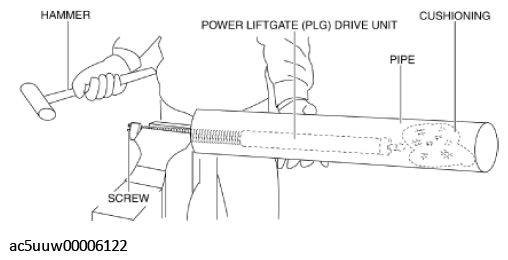

    Fig 3: Securing Spring Part Of Power Liftgate (PLG) Drive Unit In Vise
    G11425998Courtesy of MAZDA MOTORS CORP.
  4. Cover the secured power liftgate (PLG) drive unit with a pipe (PVC or equivalent) stuffed with cushioning.
  5. Hit the end of the power liftgate (PLG) drive unit screw with a hammer, pull out the screw, and remove the spring.
  6. Dispose of the power liftgate (PLG) drive unit.
