Power Liftgate (PLG) Drive Unit Preparation

  1. Secure the power liftgate (PLG) drive unit with wire wrapped around both ends of the power liftgate (PLG) drive unit to prevent it from extending.

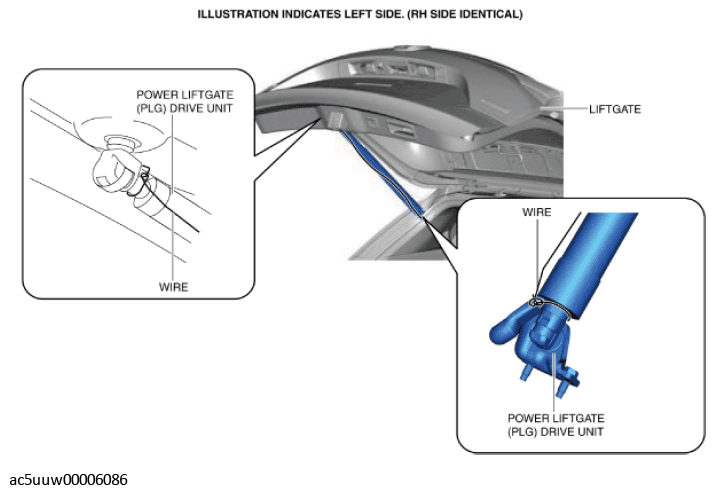

Fig 1: Securing Power Liftgate (PLG) Drive Unit With Wire Wrapped Around
G11425969Courtesy of MAZDA MOTORS CORP.
