Power Liftgate (PLG) Drive Unit Installation Note

  1. If the power liftgate (PLG) drive unit is to be reused, perform the following procedure.
    1. Remove the packing remaining on the power liftgate (PLG) drive unit.

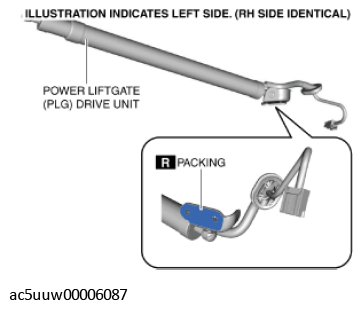

      Fig 1: Removing Packing On Power Liftgate (PLG) Drive Unit
      G11425970Courtesy of MAZDA MOTORS CORP.
    2. Adhere new packing to the position shown in the figure.
