Fuel-Filler Lid Opener Cable Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Front seat (LH) (See FRONT SEAT REMOVAL/INSTALLATION .)
2. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
3. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
4. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
5. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
6. B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
7. Lap pre-tensioner seat belt cover (LH) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
8. Lap pre-tensioner seat belt (LH) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
9. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
10. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
11. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
12. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
13. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
14. Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
15. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)

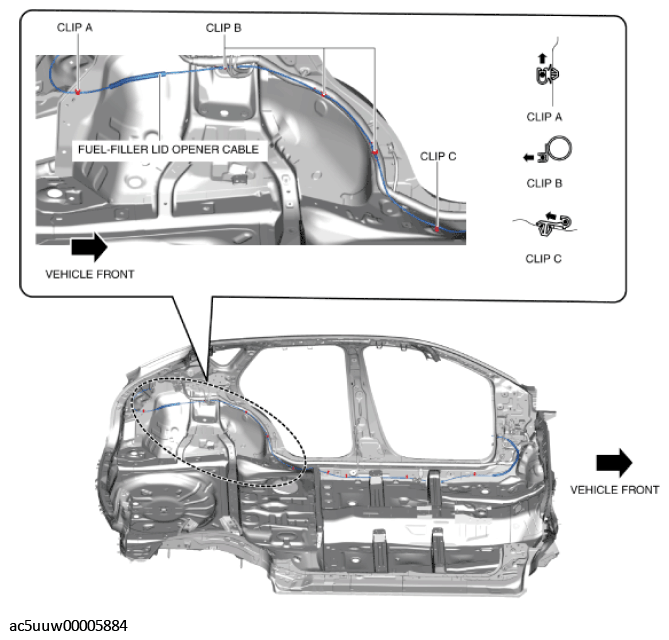

Remove the fuel-filler lid opener cable from clips A, B, and C.

Fig 1: Removing Fuel-Filler Lid Opener Cable From Clips
Courtesy of MAZDA MOTORS CORP.

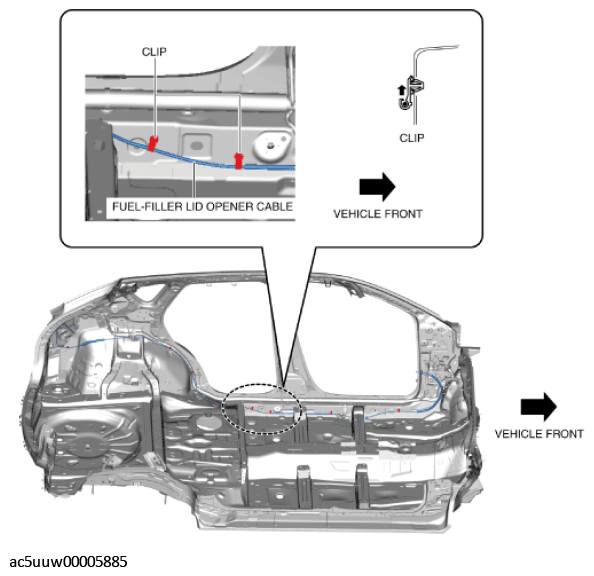

Peel back the floor mat and remove the fuel-filler lid opener cable from the clips shown in the figure.

Fig 2: Removing Fuel-Filler Lid Opener Cable From Clips
Courtesy of MAZDA MOTORS CORP.
Peel back the floor mat and remove the fuel-filler lid opener cable from the clips shown in the figure.

Fig 3: Removing Fuel-Filler Lid Opener Cable From Clips
Courtesy of MAZDA MOTORS CORP.
Pull the fuel-filler lid opener cable from the crossmember and the seat bracket.
Install in the reverse order of removal.
