Security Indicator Light: 11, DTC B10D9-87; P1260-00; Coil Antenna (Built Into Push Button Start) Error: Notes
DTC B10D9-87; P1260-00; COIL ANTENNA (BUILT INTO PUSH BUTTON START) ERROR DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Coil antenna (built into push button start) error |
| Detection condition |
- Start stop unit detected a malfunction in the coil antenna, and remote transmitter communication is not possible.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Push button start connector or terminal malfunction
- Start stop unit connector or terminal malfunction

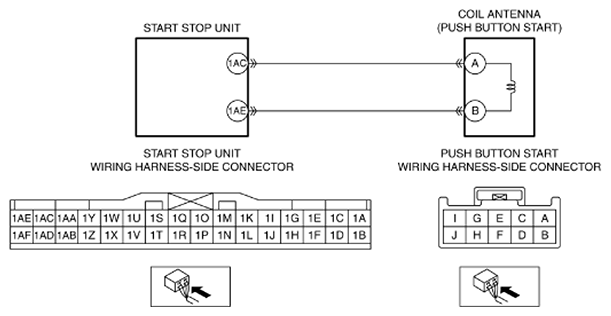

- Short to ground in wiring harness between the following terminals:
- Start stop unit terminal 1AC-Push button start terminal A
- Start stop unit terminal 1AE-Push button start terminal B
- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 1AC-Push button start terminal A
- Start stop unit terminal 1AE-Push button start terminal B
- Coil antenna malfunction
- Start stop unit malfunction
|
|
|
