On-Board Diagnostic Wiring Diagram [Start Stop Unit]

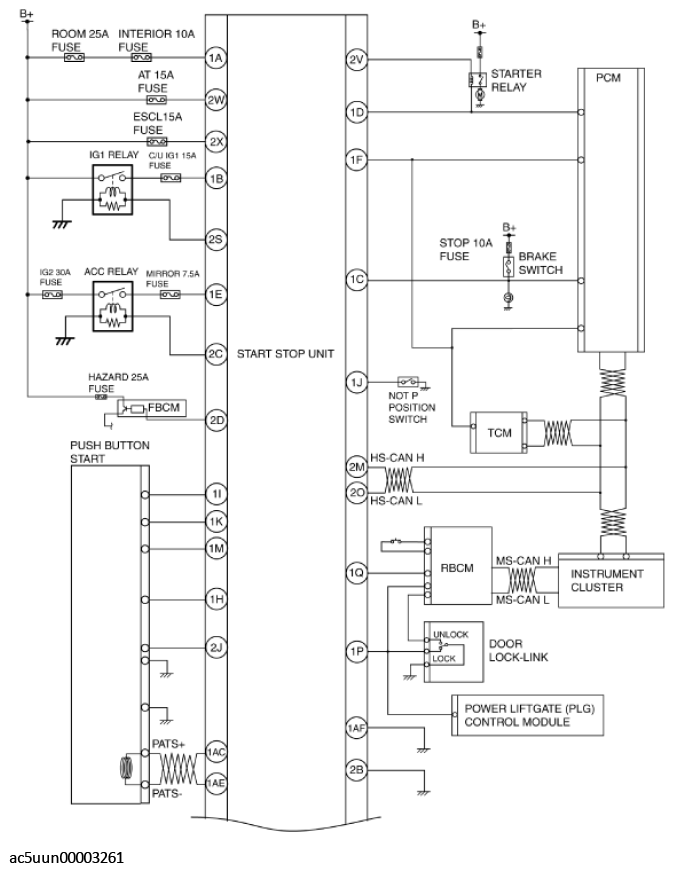

Fig 1: On-Board Diagnostic Wiring (Start Stop Unit) Circuit Diagram (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

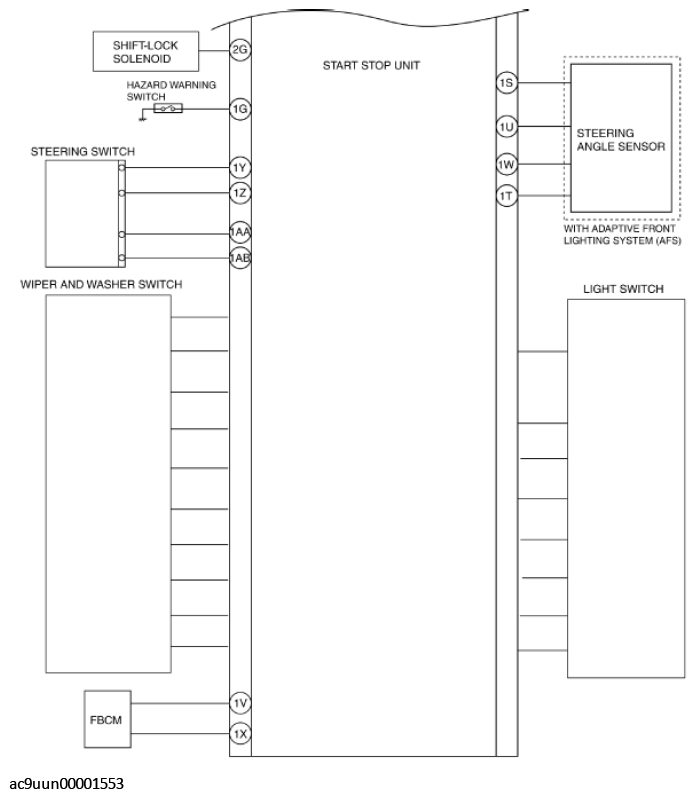

Fig 2: On-Board Diagnostic Wiring (Start Stop Unit) Circuit Diagram (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

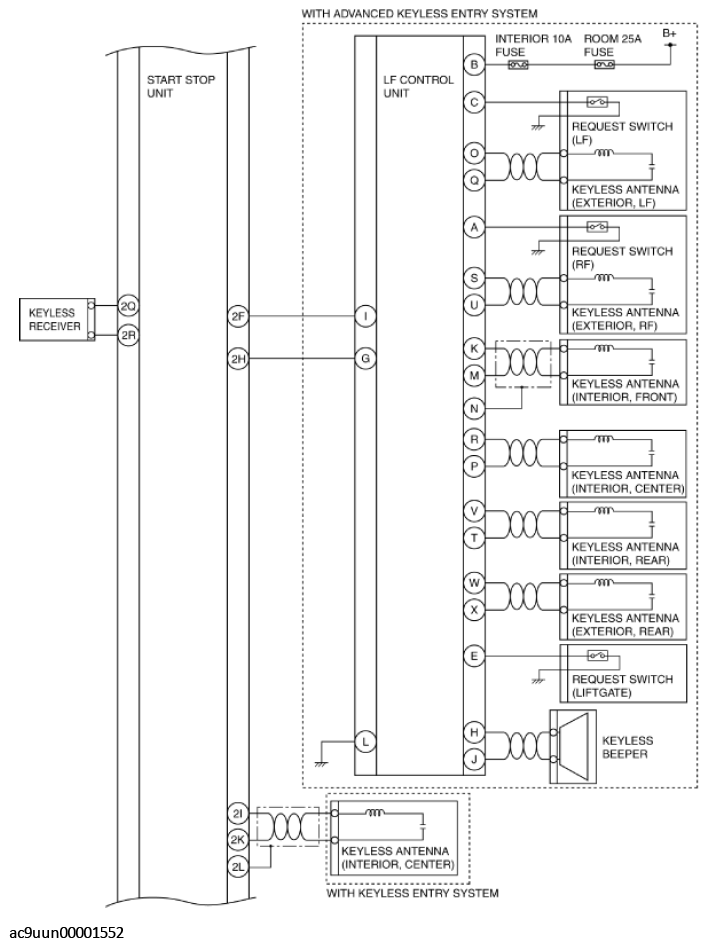

Fig 3: On-Board Diagnostic Wiring (Start Stop Unit) Circuit Diagram (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
