Troubleshooting Procedure

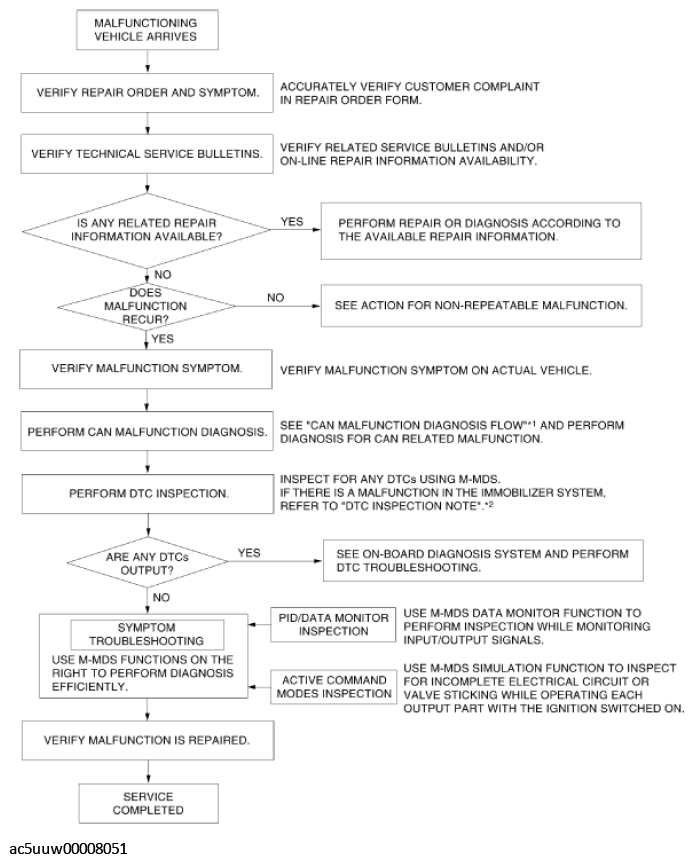

Fig 1: Foreword (Start Stop Unit) Troubleshooting Flow Chart
G11426290Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

*2: (See DTC INSPECTION NOTE .)
