DTC U3004-16; Acc Relay Circuit Malfunction: Notes

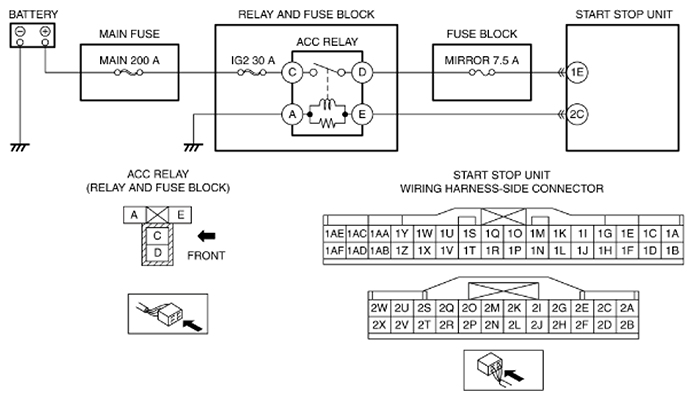

DTC U3004-16; ACC RELAY CIRCUIT MALFUNCTION DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
ACC relay circuit malfunction |
| Detection condition |
- Start stop unit detects that the ACC monitor voltage of less than 2.5 V for 1 s or more with the ignition switched to ACC or ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- ACC relay malfunction
- ACC relay circuit malfunction
- Short to ground in wiring harness between IG2 30 A fuse and ACC relay terminal C
- IG2 30 A fuse malfunction
- Open circuit in wiring harness between battery positive terminal and ACC relay terminal C
- Start stop unit connector or terminal malfunction
- Start stop unit power supply circuit (ACC) malfunction
- Short to ground in wiring harness between ACC relay terminal D and start stop unit terminal 1E
- MIRROR 7.5 A fuse malfunction
- Open circuit in wiring harness between ACC relay terminal D and start stop unit terminal 1E
- Start stop unit malfunction
|
|
|
