DTC U3004-11; Acc Relay Circuit Malfunction: Notes
DTC U3004-11; ACC RELAY CIRCUIT MALFUNCTION DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
ACC relay circuit malfunction |
| Detection condition |
- Start stop unit detects that the ACC relay output monitor voltage of less than specification for 0.05 s or more with the ignition switched to ACC or ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- ACC relay malfunction
- Start stop unit connector or terminal malfunction

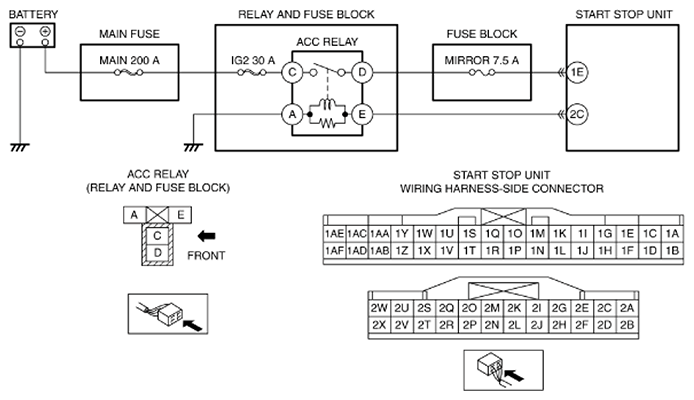

- Short to ground in wiring harness between ACC relay terminal E and start stop unit terminal 2C
- Start stop unit malfunction
|
|
|
