DTC U0028-87; Communication Error With Rear Body Control Module (RBCM): Notes
DTC U0028-87; COMMUNICATION ERROR WITH REAR BODY CONTROL MODULE (RBCM) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Communication error with rear body control module (RBCM) |
| Detection condition |
- Start stop unit detects the communication error with rear body control module (RBCM) 10 times continuously.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Rear body control module (RBCM) connector or terminal malfunction
- Start stop unit connector or terminal malfunction

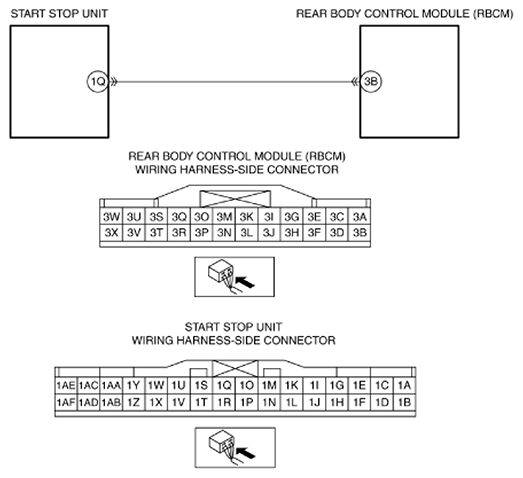

- Short to ground in wiring harness between start stop unit terminal 1Q and rear body control module (RBCM) terminal 3B
- Open circuit in wiring harness between start stop unit terminal 1Q and rear body control module (RBCM) terminal 3B
- Rear body control module (RBCM) malfunction
- Start stop unit malfunction
|
|
|
