DTC P1708-24; Starter Interlock Switch Circuit Malfunction: Notes
DTC P1708-24; STARTER INTERLOCK SWITCH CIRCUIT MALFUNCTION DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Starter interlock switch circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit in the starter interlock switch circuit for 0.5 s or more for a 5 times with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Change to the back-up mode.
|
| Possible cause |
- Starter interlock switch connector or terminal malfunction
- Open circuit in wiring harness between starter interlock switch terminal B and body ground
- Starter interlock switch malfunction
- PCM connector or terminal malfunction
- Start stop unit connector or terminal malfunction

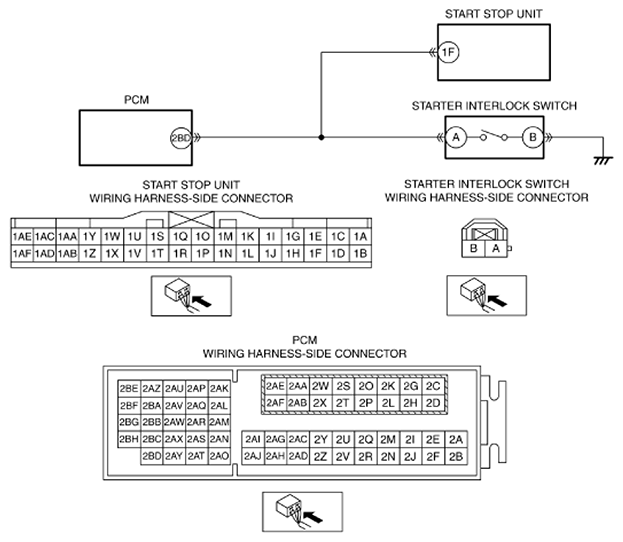

- Open circuit in wiring harness between the following terminals:
- Starter interlock switch terminal A-PCM terminal 2BD
- Starter interlock switch terminal A-Start stop unit terminal 1F
- PCM malfunction
- Start stop unit malfunction
|
|
|
