DTC P0830-23; Clutch Pedal Position Switch Circuit Malfunction: Notes
DTC P0830-23; CLUTCH PEDAL POSITION SWITCH CIRCUIT MALFUNCTION DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Clutch pedal position switch circuit malfunction |
| Detection condition |
- Start stop unit detects that the clutch pedal position switch is stuck on for 10 min or more.
|
| Fail-safe |
- Change to the back-up mode.
- Perform the control with clutch pedal position switch turned off.
|
| Possible cause |
- DTCs are stored in the PCM.
- Clutch pedal position switch connector or terminal malfunction
- Clutch pedal position switch malfunction
- Start stop unit connector or terminal malfunction
- PCM connector or terminal malfunction

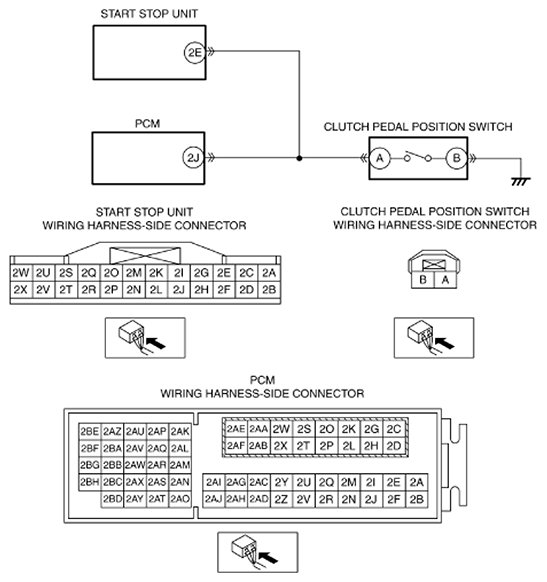

- Short to ground in the wiring harness between the following terminals:
- Clutch pedal position switch terminal A-PCM terminal 2J
- Clutch pedal position switch terminal A-Start stop unit terminal 2E
- Start stop unit malfunction
|
|
|
