DTC P0615-16; Starter Relay Circuit Malfunction: Notes
DTC P0615-16; STARTER RELAY CIRCUIT MALFUNCTION DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Starter relay circuit malfunction |
| Detection condition |
- Start stop unit detects that the starter relay circuit voltage that is less than the specification for 0.05 s or more during cranking.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Starter relay malfunction
- Start stop unit connector or terminal malfunction

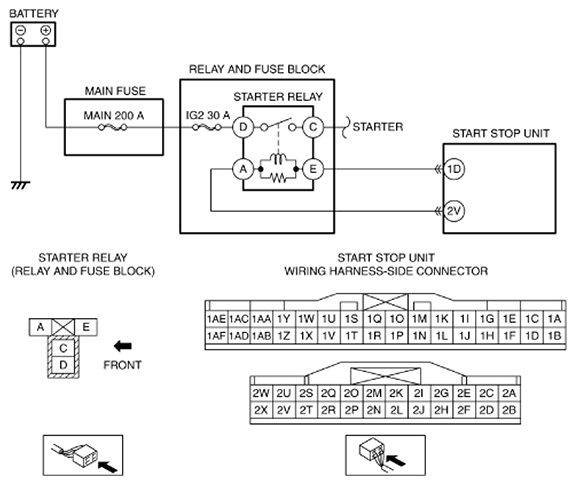

- Short to ground in wiring harness between starter relay terminal A and start stop unit terminal 2V
- Start stop unit malfunction
|
|
|
