DTC C2003-13; Open Circuit In Steering Switch: Notes
DTC C2003-13; OPEN CIRCUIT IN STEERING SWITCH DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Open circuit in steering switch |
| Detection condition |
- Start stop unit detects an open circuit in the steering switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Clock spring connector or terminal malfunction
- Clock spring malfunction
- Start stop unit connector or terminal malfunction

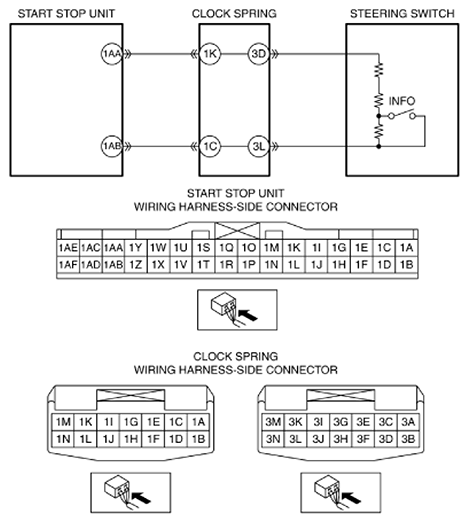

- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 1AA-Clock spring terminal 1K
- Start stop unit terminal 1AB-Clock spring terminal 1C
- Steering switch malfunction
- Start stop unit malfunction
|
|
|
