DTC C0052-14; Steering Angle Sensor A Signal Circuit Malfunction: Notes
DTC C0052-14; STEERING ANGLE SENSOR A SIGNAL CIRCUIT MALFUNCTION DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Steering angle sensor A signal circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit or short to ground in the steering angle sensor A signal circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Steering angle sensor connector or terminal malfunction
- Start stop unit connector or terminal malfunction

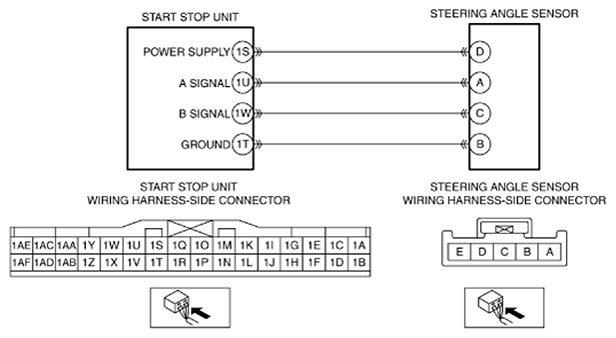

- Short to ground in wiring harness between start stop unit terminal 1U and steering angle sensor terminal A
- Open circuit in wiring harness between start stop unit terminal 1U and steering angle sensor terminal A
- Steering angle sensor malfunction
- Start stop unit malfunction
|
|
|
