DTC B10E7-17; IG1 Relay Circuit Malfunction: Notes
DTC B10E7-17; IG1 RELAY CIRCUIT MALFUNCTION - DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
IG1 relay circuit malfunction |
| Detection condition |
- Start stop unit detects the IG1 monitor voltage of 2.5 V or more for 1 s or more with the ignition switched off or ACC.
|
| Fail-safe |
Not applicable |
| Possible cause |
- IG1 relay malfunction
- Start stop unit connector or terminal malfunction

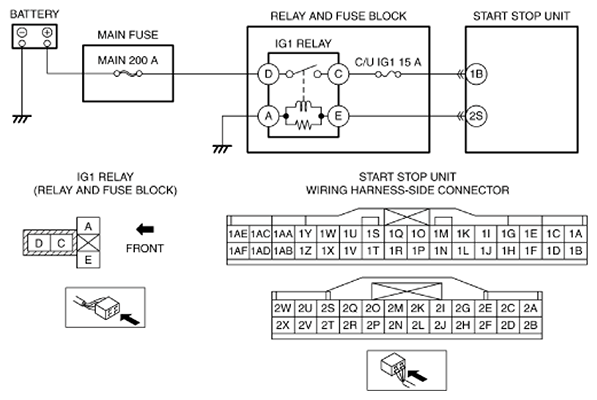

- Short to power supply in wiring harness between IG1 relay terminal C and start stop unit terminal 1B
- Start stop unit malfunction
|
|
|
